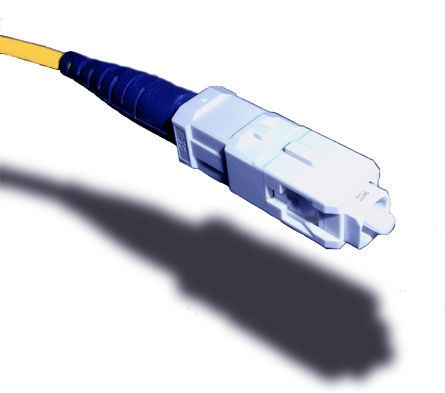

SC CONNECTORS

The SC-style connector was developed in Japan by NTT.  This connector features a 2.5mm ferrule housed in a push-pull body.  Low insertion loss and excellent return loss give it the potential to be the connector of choice in both the data and telecommunications market.  With their one-piece body design, pre-assembled and pre-polished ferrules, these connectors provide quick and economical terminations both in factory and in-the-field settings.

SINGLEMODE

SC Connector


PART CABLE SIZE
PRICE
MANUFACTURER
95-200-08-BPXY 3mm
$7.50
Siecor


PART CABLE SIZE
PRICE
MANUFACTURER
504646-4 3mm
$10.30
AMP


PART CABLE SIZE
PRICE
MANUFACTURER
86063-5000 3mm
$6.80
Molex

MULTIMODE



PART CABLE SIZE
PRICE
MANUFACTURER
95-100-48-BPXY 3mm
$6.20
Siecor


PART CABLE SIZE
PRICE
MANUFACTURER
503948-1 3mm
$4.80
AMP


PART CABLE SIZE
PRICE
MANUFACTURER
86063-0060 3mm
$4.20
Molex


PART CABLE SIZE
PRICE
MANUFACTURER
68601-201 3mm
$6.70
Thomas & Betts


COMPONENTS


PART DESCRIPTION
PRICE
MANUFACTURER

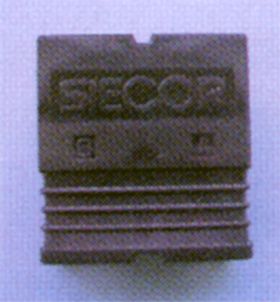

95-400-03BP Duplex Clip (for Siecor SC)
$0.60
Siecor




PART DESCRIPTION
PRICE
MANUFACTURER

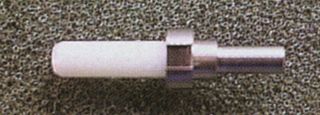

SZ-1A-PD6 SM ceramic ferrule
$3.20
Seiko Instruments USA
SZ-1B-S7 MM ceramic ferrule
$5.00
Seiko Instruments USA




PART DESCRIPTION
PRICE
MANUFACTURER
SSC-P1 Housing for 900um
$2.70
Seiko Instruments USA


PART DESCRIPTION
PRICE
MANUFACTURER
SSC-P3 Housing for 3mm
$2.70
Seiko Instruments USA
