Use Our 3D
Pro-Line Series

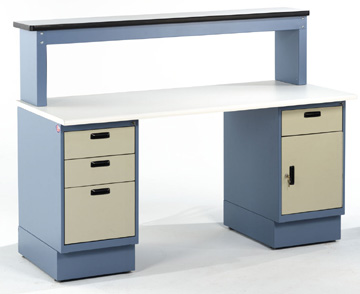

Heavy Duty Pedestal Workbench
View Specifications  |
Heavy Duty Pedestal Workbenches (Series "PCP") featuring Heavy Duty Modular Cabinets 18" Wide x 26" Deep.
Drawers feature 95% extension slides with 100 Lb. capacity per drawer. Drawer insides are slotted to accept optional dividers every 1" for optimal organization.
Stations shown with 6" high base. Overall height of station with Plastic Laminate or ESD Laminate worksurface is 35.5" set at the lowest point. Overall height with Solid Maple surface is 36" set at the lowest point.
Glides allow for 1" of adjustment (Other heights available).
When ordering two tone color scheme, please specify desired colors for housings and drawers.
NOTE: Shown with Optional Risers . 90 degree rolled front edge is an up charge. Standard and ESD surfaces come with T Mold edges standard.
Specifications
| Part Number |
Plastic Laminate |
E.S.D Laminate |
Solid 1 3/4 Maple |
|
|
60"Lx30" | PCP6030APL | PCP6030AESD | PCP6030ASM |
| Wgt. (lbs.) 279 | Wgt. (lbs.) 279 | Wgt. (lbs.) 311 | ||
| 72"Lx30" | PCP7230APL | PCP7230AESD | PCP7230ASM | |
| Wgt. (lbs.) 291 | Wgt. (lbs.) 291 | Wgt. (lbs.) 328 | ||
 |
||||
|
60"Lx30" | PCP6030BPL | PCP6030BESD | PCP6030BSM |
| Wgt. (lbs.) 234 | Wgt. (lbs.) 234 | Wgt. (lbs.) 266 | ||
| 72"Lx30" | PCP6030BPL | PCP6030BESD | PCP6030BSM | |
| Wgt. (lbs.) 246 | Wgt. (lbs.) 246 | Wgt. (lbs.) 283 | ||
|
|
||||
|
60"Lx30" | PCP6030CPL | PCP6030CESD | PCP6030CSM |
| Wgt. (lbs.) 256 | Wgt. (lbs.) 256 | Wgt. (lbs.) 288 | ||
| 72"Lx30" | PCP6030CPL | PCP6030CESD | PCP6030CSM | |
| Wgt. (lbs.) 268 | Wgt. (lbs.) 268 | Wgt. (lbs.) 305 | ||
|
|
||||
|
60"Lx30" | PCP6030DPL | PCP6030DESD | PCP6030DSM |
| Wgt. (lbs.) 256 | Wgt. (lbs.) 256 | Wgt. (lbs.) 308 | ||
| 72"Lx30" | PCP6030DPL | PCP6030DESD | PCP6030DSM | |
| Wgt. (lbs.) 288 | Wgt. (lbs.) 288 | Wgt. (lbs.) 325 | ||
|
|
||||
|
60"Lx30" | PCP6030EPL | PCP6030EESD | PCP6030ESM |
| Wgt. (lbs.) 264 | Wgt. (lbs.) 264 | Wgt. (lbs.) 296 | ||
| 72"Lx30" | PCP6030EPL | PCP6030EESD | PCP6030ESM | |
| Wgt. (lbs.) 276 | Wgt. (lbs.) 276 | Wgt. (lbs.) 313 | ||
|
|
||||
|
60"Lx30" | PCP6030FPL | PCP6030FESD | PCP6030FSM |
| Wgt. (lbs.) 290 | Wgt. (lbs.) 290 | Wgt. (lbs.) 322 | ||
| 72"Lx30" | PCP6030FPL | PCP6030FESD | PCP6030FSM | |
| Wgt. (lbs.) 302 | Wgt. (lbs.) 302 | Wgt. (lbs.) 302 | ||
|
|
||||
|
60"Lx30" | PCP6030GPL | PCP6030GESD | PCP6030GSM |
| Wgt. (lbs.) 284 | Wgt. (lbs.) 284 | Wgt. (lbs.) 316 | ||
| 72"Lx30" | PCP6030GPL | PCP6030GESD | PCP6030GSM | |
| Wgt. (lbs.) 296 | Wgt. (lbs.) 296 | Wgt. (lbs.) 333 | ||
|
|
||||
|
60"Lx30" | PCP6030HPL | PCP6030HESD | PCP6030HSM |
| Wgt. (lbs.) 300 | Wgt. (lbs.) 300 | Wgt. (lbs.) 332 | ||
| 72"Lx30" | PCP6030HPL | PCP6030HESD | PCP6030HSM | |
| Wgt. (lbs.) 312 | Wgt. (lbs.) 312 | Wgt. (lbs.) 349 | ||
|
|
||||
|
60"Lx30" | PCP6030IPL | PCP6030IESD | PCP6030ISM |
| Wgt. (lbs.) 312 | Wgt. (lbs.) 312 | Wgt. (lbs.) 344 | ||
| 72"Lx30" | PCP6030IPL | PCP6030IESD | PCP6030ISM | |
| Wgt. (lbs.) 324 | Wgt. (lbs.) 324 | Wgt. (lbs.) 361 | ||
|
|
||||
|
60"Lx30" | PCP6030JPL | PCP6030JESD | PCP6030JSM |
| Wgt. (lbs.) 307 | Wgt. (lbs.) 307 | Wgt. (lbs.) 339 | ||
| 72"Lx30" | PCP6030JPL | PCP6030JESD | PCP6030JSM | |
| Wgt. (lbs.) 319 | Wgt. (lbs.) 319 | Wgt. (lbs.) 356 | ||
|
|
||||
|
60"Lx30" | PCP6030KPL | PCP6030KESD | PCP6030KSM |
| Wgt. (lbs.) 284 | Wgt. (lbs.) 284 | Wgt. (lbs.) 316 | ||
| 72"Lx30" | PCP6030KPL | PCP6030KESD | PCP6030KSM | |
| Wgt. (lbs.) 296 | Wgt. (lbs.) 296 | Wgt. (lbs.) 333 | ||
|
|
||||
|
60"Lx30" | PCP6030LPL | PCP6030LESD | PCP6030LSM |
| Wgt. (lbs.) 147 | Wgt. (lbs.) 147 | Wgt. (lbs.) 180 | ||
| 72"Lx30" | PCP6030LPL | PCP6030LESD | PCP6030LSM | |
| Wgt. (lbs.) 162 | Wgt. (lbs.) 162 | Wgt. (lbs.) 177 | ||
|
|
||||
|
60"Lx30" | PCP6030MPL | PCP6030MESD | PCP6030MSM |
| Wgt. (lbs.) 158 | Wgt. (lbs.) 158 | Wgt. (lbs.) 190 | ||
| 72"Lx30" | PCP6030MPL | PCP6030MESD | PCP6030MSM | |
| Wgt. (lbs.) 170 | Wgt. (lbs.) 170 | Wgt. (lbs.) 207 | ||
|
|
||||
|
60"Lx30" | PCP6030NPL | PCP6030NESD | PCP6030NSM |
| Wgt. (lbs.) 175 | Wgt. (lbs.) 175 | Wgt. (lbs.) 207 | ||
| 72"Lx30" | PCP6030NPL | PCP6030NESD | PCP6030NSM | |
| Wgt. (lbs.) 187 | Wgt. (lbs.) 187 | Wgt. (lbs.) 224 | ||
|
|
||||
|
60"Lx30" | PCP6030OPL | PCP6030OESD | PCP6030OSM |
| Wgt. (lbs.) 182 | Wgt. (lbs.) 182 | Wgt. (lbs.) 214 | ||
| 72"Lx30" | PCP6030OPL | PCP6030OESD | PCP6030OSM | |
| Wgt. (lbs.) 194 | Wgt. (lbs.) 194 | Wgt. (lbs.) 231 | ||
|
|
||||
|
60"Lx30" | PCP6030PPL | PCP6030PESD | PCP6030PSM |
| Wgt. (lbs.) 182 | Wgt. (lbs.) 182 | Wgt. (lbs.) 214 | ||
| 72"Lx30" | PCP6030PPL | PCP6030PESD | PCP6030PSM | |
| Wgt. (lbs.) 197 | Wgt. (lbs.) 197 | Wgt. (lbs.) 212 | ||
Drawer Dividers - Galvanized Steel
| Size (H) | Part No. | Wt. | Stock? |
| 3" | DD3 | 1.5 | No |
| 6" | DD6 | 2.5 | No |
| 12" | DD12 | 4.5 | No |
