WAFERMASTERT

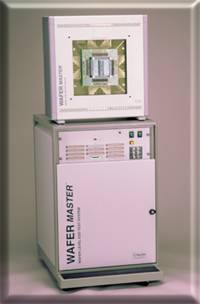

The WAFERMASTER is the first and only wafer level ESD test system available on the market. An easy to use, automated ESD test system, WAFERMASTER rapidly and accurately tests at the wafer level in order to identify any ESD problems before continuing to the device's packaged level. Manufacturers can follow their standard ESD qualification plan and test the wafers at the same predetermined IC target levels, stresses and sampling sizes or establish new routines. The system is configured to operate in conjunction with standard industry probe stations and testing is controlled via PC using WAFERMASTER Windows-based ESD test software. The WaferMaster also tests packaged devices with up to 32, 64 or 128 pins using standard DUT fixtures. The WAFERMASTER performs ESD testing per the following standards. Human Body Model (HBM) per MIL-STD-883D, method 3015.7 Machine Model (MM) , 200pF, 0W The WAFERMASTER has a standard one-year warranty with extended warranty programs available. For additional product information, please download the WAFERMASTER brochure. For an in-depth product specification sheet, please visit our literature room or complete the KeyTek Contact Us. |
|||||||||||||||||
|
Thermo
KeyTek |
