TACTILE POLYESTER DOME
Description:
A tactile
polyester dome is produced by thermoforming a pre-printed polyester
sheet into an array of domes with a specific shape and set of operating
characteristics. In collapsing the dome with an actuator, a crisp tactile
response is achieved, which indicates continuity has been established.
.
Applications:
- Cell phone: Used in conjunction
with a silicone rubber keypad to provide switch shorting. Can mate
to a flexible multi-layer circuit or a PCB.
- Appliance panel: Used
in conjunction with graphic overlay mated to a multi-layer flexible
circuit.
- Replacement for elastomeric
pad with carbon shorting pads. Domes may be actuated directly by a
plastic actuator that is integral with a molded keycap.
Presentation
Options:
- Individualized; attached
to a flex circuit or as a domesheet with release liner.
- Reel or fanfold; Dome
layer only may be supplied in continuous web with or without tractor
feed for use in automated assembly line.
DESIGN
CONSIDERATIONS
- Clearance for dome
- Actuator size
- Desired Peak Force (Fmax)
and Tactile Feel (Tactile Ratio)
Tactile
ratio is
the snap or tactility of the dome when depressed and is computed using
the following formula: (Fmax - Fmin)/Fmax
Peak
Force (Fmax)
is the maximum gram force measured at the point of dome snap. Fmin
is the point past dome snap at which the printed contact area on the
inside of the apex of the dome contacts the shorting pad on the circuit.

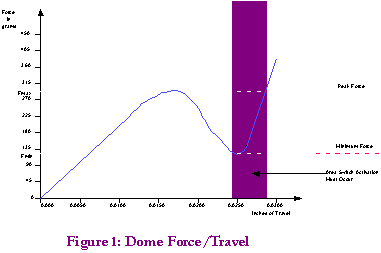

Figure 1 depicts graphically the relationship between force and travel
and the Fmax and Fmin points.
DOME
FEATURES AND SPECIFICATIONS
Environmental
|
|
Storage Temperature:
|
-40°C to 100°C, 120 hours
|
Humidity Range:
|
10% to 85%
|
Temperature Shock:
|
-40°C to 85°C, 32 cycle @ 30 minute interval dwells
|
Accelerated Aging:
|
85°C/85% relative humidity for 120 hours
|
Dome Construction
|
See Figure 2 for typical dome detail
|
Actuator:
|
Typically specified by customer based on keypad size
Hard plastic or silicone rubber
Size: typically ½ dome diameter
|
Dome Layer:
|
.004" or .005" polyester (PET)
Clear PET preferred, white PET available for reflectance
Thickness of PET will affect peak force and dome height
|
Spacer Layer:
|
.002" acrylic adhesive on either side of a .001"-.004"
PET support liner. Thickness of spacer will affect tactile feel
and dome height
|
Bottom Circuit: (if required):
|
.004" or .005" PET circuit with inter-digitated fingers
|
Dome venting:
|
Domes may be vented internally if more than 4
domes in series or externally via a hole in dome layer or channel
to perimeter through spacer layer
|

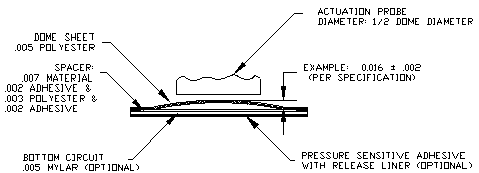

Figure 2:
Dome Construction Detail
Dome characteristics
|
|
Peak Force:
|
150 to 300 grams, +/-25%, Application dependent
|
Tactile Ratio:
|
.30 to .65, Application
dependent
|
Displacement:
|
.023 to .034
Smaller dome, less displacement
Lower peak force or tactile ratio, less displacement
|
Dome diameter:
|
.187 to .375 inches, application dependent
|
Number of actuations at 25°C
|
1,000,000
|
