Technical Information


Applications

  • Calibration of Spectrophotometers
  • Calibration of Spectrofluorometers
  • Industry Standards for
    - Biomedical
    - Paper
    - Pharmaceutical
    - Textiles

Spectralon wavelength calibration standard sets consist of three wavelength calibration standards covering the UV-VIS-NIR region of the spectrum. Each wavelength standard is formulated by impregnating a Spectralon substrate with the oxide of a rare earth element which displays sharp absorption spikes at specific wavelengths. Complete absorption spectral data is supplied with each standard.

The three standards available are:

  • Holmium Oxide - for UV-Vis-NIR calibrations
  • Dysprosium Oxide - for NIR calibrations
  • Erbium Oxide - for Vis-NIR calibrations

These durable, washable and chemically inert standards are ideal for wavelength calibration of spectrophotometers, reflectometers and other spectral instruments. Custom wavelength calibration standards are available to meet your individual needs. Please contact our Technical Sales Department for more information about custom standards development.

click here
Holmium
click here
Dysprosium

click here
Erbium
View Typical Spectral Reflectance Factor for Wavelength Calibration Standards

Specifications and Ordering Information

Wavelength Calibration standards are available in 1.25 or 2.00 inches in diameter. The standards are sold individually, or in sets of three. Each standard is housed in a durable delrin holder with a protective cover.
Set Part No.
Standards
Included
StandardType
Reflective Area (inches)
WSS-03-010
WCS-HO-010
Holmium Oxide
1.25 D

WCS-DO-010
Dysprosium Oxide
1.25 D
WCS-EO-010
Erbium Oxide
1.25 D
WSS-03-020
WCS-HO-020
Holmium Oxide
2.00 D
WCS-DO-020
Dysprosium Oxide
2.00 D

WCS-EO-020
Erbium Oxide
2.00 D


The Spectralon multi-component Wavelength Calibration Standard combines three rare earth oxides holmium oxide, erbium oxide and dysprosium oxide to provide a consistently stable standard that exhibits high resolvable peaks and strong absorbance characteristics. The standard is used for establishing the accuracy of the near infrared (NIR) wavelength scale of reflectance spectrophotometers.

Made from Spectralon diffuse reflectance material, these durable, washable, chemically inert standards are ideal for calibration of monochromators and reflectance spectrophotometer system arrays.

Calibration data for peak absorbance wavelengths and relative to maximum absorbance is provided with the standard. Calibration is traceable to National Research Council, Canada (NRCC) standards.

APPLICATIONS

  • Calibration of Spectrofluorimeters
  • Industry Standards for
    - Biomedical
    - Paper
    - Pharmaceutical
    - Textiles

click here
reflection
click here
absorbtion

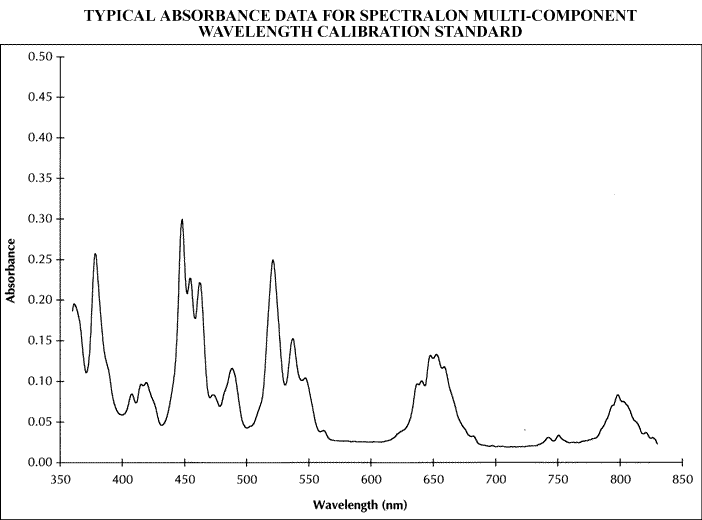

View Typical Spectral Reflectance and Absorbance Factors for Multi-Component Wavelength Calibration Standard

Specification and Ordering information

Part Number

Reflective Area
(inches)

Overall Dimensions
(inches)

WCS-MC-010

1.25 D

1.50 D x 0.55 H

WSC-MC-020

2.00 D

2.38 D x 0.60 H
