Technical Information


Applications
  • Calibration of Densitometers
  • Calibration of Integrating Sphere Systems
  • Calibration of Optical Equipment
  • Calibration of Photographic Equipment
  • Calibration of Reflectometers
  • Calibration for Remote Sensing

Spectralon diffuse reflectance standards are available individually and in sets consisting of a diffuse white standard, and a selection of diffuse gray standards. Each is supplied with complete diffuse reflectance data from 250nm to 2500nm. Each standard is housed in a durable delrin holder with a protective cover. Spectralon diffuse white standards offer the highest diffuse reflectance values of any known substance. These durable, chemically inert and washable standards have typical reflectance values of 95% to 99% and are spectrally flat over the UV-VIS-NIR spectrum. All Spectralon materials are typically flat to +/- 4% over the range of 250 to 2500 nm and +/- 1% over the photopic region of the spectrum. Spectralon reflectance standards and materials are highly lambertian over their effective spectral range. Spectralon SRM-99 reflectance material is the most lambertian reflector available for use over the wavelength range from 250 - 2500 nm. All reflectance calibration tests are performed in the Reflectance Spectroscopy Laboratory at Labsphere. The standards used in these tests are directly traceable to The National Institute of Standards and Technology.

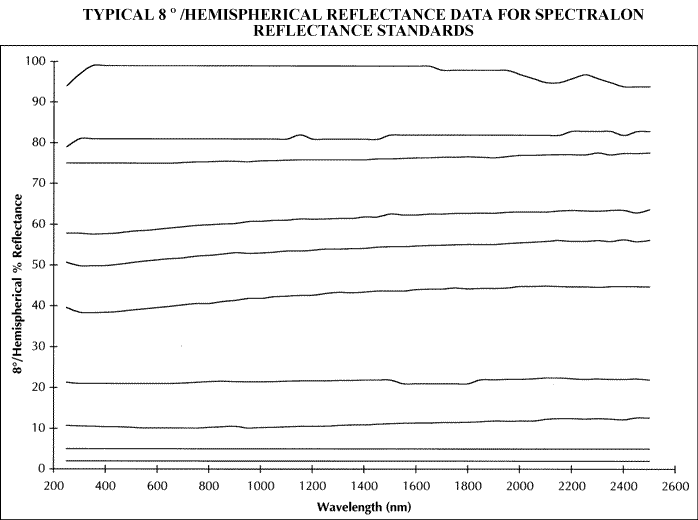

click here  View Typical Spectral Reflectance Factor for Diffuse Reflectance Standard


Specifications and Ordering Information

Diffuse Reflectance Sets
Diffuse reflectance standards are available in sets of four or eight standard sin either 1.25 or 2.00 inch diameters. A set of four standards includes one each of the following reflectance values: 99%, 75%, 50% and 2%. A set of eight standards includes one each of the following reflectance values: 99%, 80%, 60%, 40%, 20%, 10%, 5% and 2%.
Individual Diffuse Reflectance Standards
Diffuse reflectance standards are available individually (1.25 or 2.00 inch diameter) in the following reflectance values: 99%, 80%, 75%, 60%, 50%, 40%, 25%, 20%, 10%, 5% and 2%.

Custom Reflectance Standards

Spectalon reflectance standards are available on custom order with reflectance properties to meet your specific needs. Please contact our Technical Sales Department for details.

Set Part No.
Standards
Included
Reflectance
Factor (%)
Overall
Dimensions

(inches)
RSS-04-010
SRS-99-010
99%
1.50D x 0.55 H

SRS-75-010
75%
1.50D x 0.55 H
SRS-50-010
50%
1.50D x 0.55 H

SRS-02-010
2%
1.50D x 0.55 H
RSS-04-020
SRS-99-020
99%
2.38D x 0.60 H

SRS-75-020
75%
2.38D x 0.60 H
SRS-50-020
50%
2.38D x 0.60 H

SRS-02-020
2%
2.38D x 0.60 H
RSS-08-010
SRS-99-010
99%
1.50D x 0.55 H

SRS-80-010
80%
1.50D x 0.55 H
SRS-60-010
60%
1.50D x 0.55 H

SRS-40-010
40%
1.50D x 0.55 H
SRS-20-010
20%
1.50D x 0.55 H

SRS-10-010
10%
1.50D x 0.55 H
SRS-05-010
05%
1.50D x 0.55 H

SRS-02-010
02%
1.50D x 0.55 H
RSS-08-020
SRS-99-020
99%
2.38D x 0.60 H

SRS-80-020
80%
2.38D x 0.60 H
SRS-60-020
60%
2.38D x 0.60 H

SRS-40-020
40%
2.38D x 0.60 H
SRS-20-020
20%
2.38D x 0.60 H

SRS-10-020
10%
2.38D x 0.60 H
SRS-05-020
05%
2.38D x 0.60 H

SRS-02-020
02%
2.38D x 0.60 H
