StatSpin^® CritSpin

Microhematocrit System

The StatSpin CritSpin is a compact, quiet, microhematocrit system which provides complete cell packing in only 2 minutes.

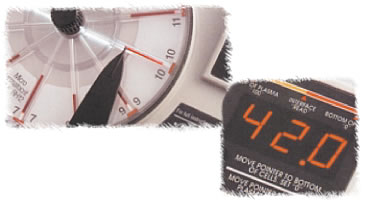

The CritSpin whisper quiet, compact system is perfect for the office, laboratory or clinic… anywhere fast, accurate and cost effective microhematocrits are required. Featuring an easy-to-use Digital Reader, the CritSpin System offers a range of important benefits: - 2 minute spin, complete cell packing - Meets CLSI standards - Read tubes in the rotor, less handling, less risk - Digital HCT display reduces chance of error - Accepts glass or SafeCrit plastic tubes - Tube balancing not required, vibration free operation.

The CritSpin Centrifuge includes a remote universal power supply that works off single phase electrical power from 100-240 VAC 50/60 Hz and is UL approved and CE marked.

StatSpin CritSpin

Documentation and Literature

Specifications

Speed/Force	16,000 rpm / 13,700 xg
Total Cycle Time	120 seconds
Capacity	12 x 40 mm capillary tubes
Accell Time	6 seconds to 95% of speed
Regulatory	UL and CE Marked
Warranty	1 Year
Power	24VDC 1.7A
Dimensions	6.0"H x 6.8"W x 8.6"D (5lbs)
Specification subject to change without prior notice. StatSpin is a registered trademark of Iris Sample Processing, Inc.

Reader Specifications

Increments	0.5% or 0.005
Maximum Tube	2.5 x 100 mm
Illumination	Fiber Optic Bundle
Dimensions	2.4" H x 6.8" W x 6.4" D / 1.3 lbs.

Ordering Information

CS22	CritSpin System with Digital Reader
CS12	CritSpin Centrifuge, without Digital Reader
CSD2	CritSpin Digital Reader
RH12	Replacement 12-place rotor
HP8H	Plastic capillary tubes, heparinized, 100 / vial
HP8U	Plastic capillary tubes, untreated, 100 / vial
HT9H	Glass capillary tubes, heparinized, 100 / vial
HT9U	Glass capillary tubes, untreated, 100 / vial
HS24-10	Sealant Pad for Capillary Tubes, 10 / pk.

StatSpin® CritSpin
